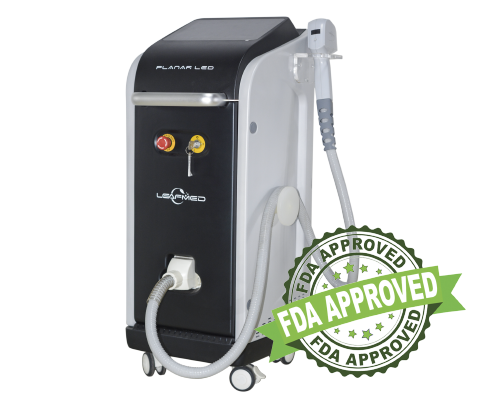

High-power LED Hair Removal Equipment -Planar LED
Applications: Safe and highly effective for hair removal, even the dark skin
- The world’s first high-power LED equipment for hair removal
- FDA Approved (K220103), Japanese and International Patent Technology
- Up to 100 million shots’ lifespan
- WIFI internet connection
- Over 8 years’ stable use without any consumable
Overview
Planar LED(Vertical LED hair removal machine) features Leaflife’s latest hair removal technology – LED hair removal, an international patent technology. Planar LED uses light wavelength 780 – 850 nm mainly absorbed by melanin in follicle, with an small to 15° light’s divergence angle, is safe and highly effective for hair removal, even the dark skin.
What is LED Hair Removal
LED hair removal use high-power super-emitting LED (Planar LED) array (12 pieces of chip) as a light source, crystal guide pyramid shaping and transmission of NIR beam, act on the subcutaneous, melanin in hair follicle absorb heat, to achieve hair removal effect.
Up to 100 million shots and 5 years’ expected service lifetime(less than 10% failure and 20% power attenuation), without any consumable. Stable performance, low malfunction rate, no downtime. Very easy maintenance and after sales services. Low running cost, but high return on investment.
Planar LED use near infrared light with wavelength 780~850nm, little absorbed by skin tissue and vascular etc., but mainly absorbed by melanin in follicle, so hair removal is highly effective. Light spectrum has width, so can apply to more skin colors including dark skin.
Features and Advantages
1. High Power & Energy; Excellent Clinical Effect
Total 1800W, 12 pieces of 150W lamp beads(chip) from USA. Chip outside size is small, can collocate chips compactly, to achieve higher power density. Compared with similar VCSEL laser(non-channel laser), power density is higher about 70%, enhance clinical effect a lot.
2. Convenient and solid hand piece
Handle can be changed singly, more strong, even if bending or collision not induce damage. During operation, intelligent LCD window can show being used energy, pulse interval, frequency, and shots count clearly, convenient for operator.
3. Sapphire Contact Cooling
Water cooling and TEC contact cooling. Because of compact chips’ collocation, when transmission in light guide crystal, efficiency is high, so still can have sapphire contact cooling. The lowest temp. reach -15℃, cool enough to protect epidermis, comfortable treatment feeling.
4. Intelligent software
5. Big Spot Size
6. WIFI Internet Connection: Convenient remote after sales services.
Online management system for clients: Each machine place and situation checking, warn record, problem judge, software updating and lease setting etc. online function.
Technology Comparison
| Technology | IPL | Diode Laser | LED | |
| Light source features | Light source | Xenon lamp | Diode laser bars | LED chips |
| wavelength | Wide spectrum 610nm-900nm | Single wavelength 755/808nm/1064nm | Narrow spectrum 780-850nm | |
| Light power | 5-10kw | 320-1000w | 1800w | |
| Light emitting area shape | Columnar | Line | Surface | |
| Pulse lifespan | 10000-30000shots | 8-30million shots | 60-100 million shots | |
| Operation | Operation mode | Stamp | Stamp/Repeat | Stamp/Repeat |
| Energy density | 1-40j/cm2 | Stamp:50-100cm2 Repeat:5-12J/cm2@10Hz | Stamp:50-100cm2 Repeat:5-12J/cm2@10Hz | |
| Maintenance | Handle | Always need change light tube | Laser generator is easily damaged, need replace every 1 to 2 years | If normal use and regular maintenance, handle has the same lifespan as device |
| Filter | No need | Need often change filter and deionizer, if not, laser generator is easily damaged | No need | |
| Cooling water | Drinking water | Special deionized water or coolant | Drinking water |
Before & After Photos
Planar LED Series: the positive effect after the recommended treatment plan
Parameters
| Light source | LED |
| Light spectrum | NIR |
Light power | 1760W |
Pulse width | 5ms-750ms |
Energy density | 1-100J/cm2 |
Frequency | 1-10Hz |
Skin type | I-VI |
Operation mode | Stamp, Repeat |
Spot size | 12mm*22mm |
Cooling system | TEC Sapphire contact cooling/ Water cooling |
Cooling temperature | -15℃ ~ 10℃ |
Size | 430*500*870mm |
Net weight | 35KG |
*More specifications about LED Therapy Device
