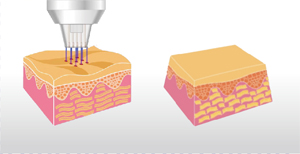

Under the controllable way, the needle-shaped plasma column is released to the skin surface by the fractional way and dot by dot. The principle is to ionize gas in the air to create more small electrical arches, tissues are treated “sublimate” and avoid spreading unwanted heat to the surrounding areas. The heat widens and is subsequently transferred into the epidermis all the way to the papillary layer which contains fibroblast cells. The result is contraction and tightening of the skin cells, leads to the skin remodeling and improvement in various signs of aging and scar etc.
Equipment Characters

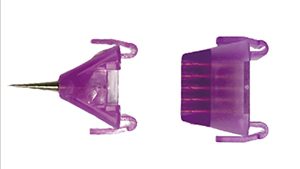

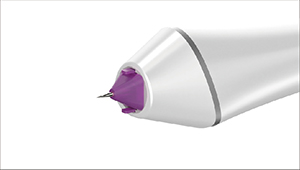

A Two spark modes for invasive way
The purple color tip’s needles just contact skin, the short plasma arc penetrate deeply into skin and happen local glow. Invasive treatment way by high energy level 6 to 10, different skin situation can choose exact energy level for wrinkles, eyes, and scar. The epidermis is completely broken down, and the energy is mainly released axially along the breakdown path, reaching the dermal papilla layer and reticular layer.
Traditional single needle tip focus to accurate treatment for face’ s small area, especially eyelid lifting. Moles, warts and polyp, etc. also can be cut fast by this tip.

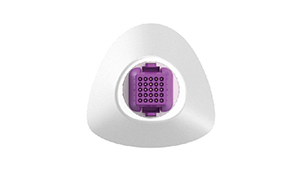

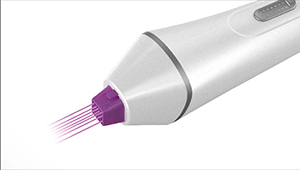

B Safe and accurate fractional scan
High power design but more energy level choice, high energy of plasma column. Adaptive high-frequency excitation source, the plasma column’s energy is stable, convenient to adjust, and good directivity.
Small dot size and even dots distribution, low risk of skin side effect. Comfortable treatment feeling, no need anesthesia, high safety and no downtime.
Deep treatment depth, excellent effect.
C More scan mode
Dot, line, and fractional array are optional, meet target shapes precisely.
D Fast and efficient
Dot-by-dot scanning operation, short treatment time, good consistency to dots, ensure the excellent effect.
E High integration and smart design. High reliability and stable performance.
F Low investment and but extremely high return.
Technical Advantages
Compared to Fractional RF, whose energy just reach epidermis, so can’t treat wrinkles and scar problem in dermis. Needles don’t contact skin to operate, not be influenced by skin resistance. By higher voltage, faster discharge, release energy in shorter time, lower skin damage.
Compared to Fractional laser, Mjolnir Trio’s investment cost is much more economical but can cover all the applications of laser. Safety risk to operator and patient both are much lower and can be used more widely, no any medical limits.
Compared with normal plasma, whose current excitation is performed at a lower frequency, and the plasma column has poor directivity and low power. Single plasma’s treatment needs much longer time, the handle and energy is difficult to control, un-even treatment depth, and dots’ consistency is poor, so more dangerous and bigger damage risk to skin.
Compared with Micro-needle RF, which is purely invasive treatment way, Mjolnir is much less dangerous and has much lower consumable cost.
Conclusion: Fractional plasma is best solution to replace all the fractional beauty technologies as innovative design!
Application
Cut moles, warts and polyp etc.
Eye treatment: eyelid and eye bags
Wrinkles: striae gravidarum, stretch mark, striae atrophicae, aging wrinkle
Anti-aging: aged skin, flabby and flagging skin, no elasticity
Scars: acne scar, surgical scar, proliferative scar, burn scar, traumatic scar

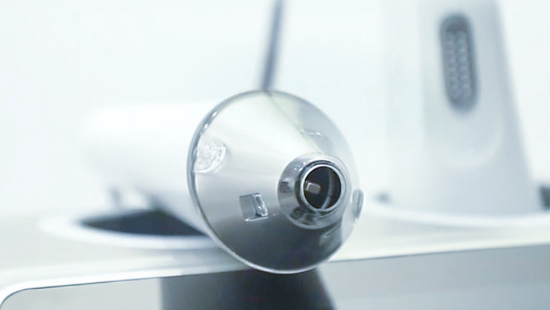

What is Cold Plasma?
The gas of the low-temperature plasma is only partially ionized or unionized, and it is divided into thermal equilibrium plasma and non-thermal equilibrium plasma. In the thermal equilibrium plasma, the electron temperature and ion temperature are equal, and the temperature is high; Although the electron temperature of non-thermal equilibrium plasma reaches 103K, the temperature of heavy particles such as ions and atoms can be as low as 300K, which is close to room temperature. The macroscopic temperature of the plasma depends on the temperature of the heavy particles, so this kind of plasma is also called cold plasma, because it can be produced at atmospheric pressure. Also known as cold atmospheric plasma (CAP). More about cold plasma technology and treatments
BENEFITS OF NON-ABLATIVE COLD PLASMA TREATMENT
In a past breakthrough experiment, a mere 2-minute treatment of cold atmospheric plasma was seen to decrease 40% of the bacterial load in plasma-treated wounds, regardless of the species of bacteria. Skin cleaning, acne skin with inflammation, allergic dermatitis, and eczema treatment.
Plasma technology instantly activates the epidermal cells of the skin with high amounts of energy, which increases the skin’s hydrophilicity. Enhances the absorption of active ingredients.
Improve skin texture and tone: rough skin, large pores, greasy skin, skin resurfacing.
Active nitrogen and oxygen ions can easily pass through pores and enter the deeper layers of skin, catalyzing the regeneration of fibroblasts. This stimulates the production of collagen, elastin and hyaluronic acid, effectively reducing fine lines and wrinkles caused by photodamage and aging. Additionally, plasma technology boosts cell turnover to strengthen skin elasticity, and to improve uneven skin tones and pigmentation.

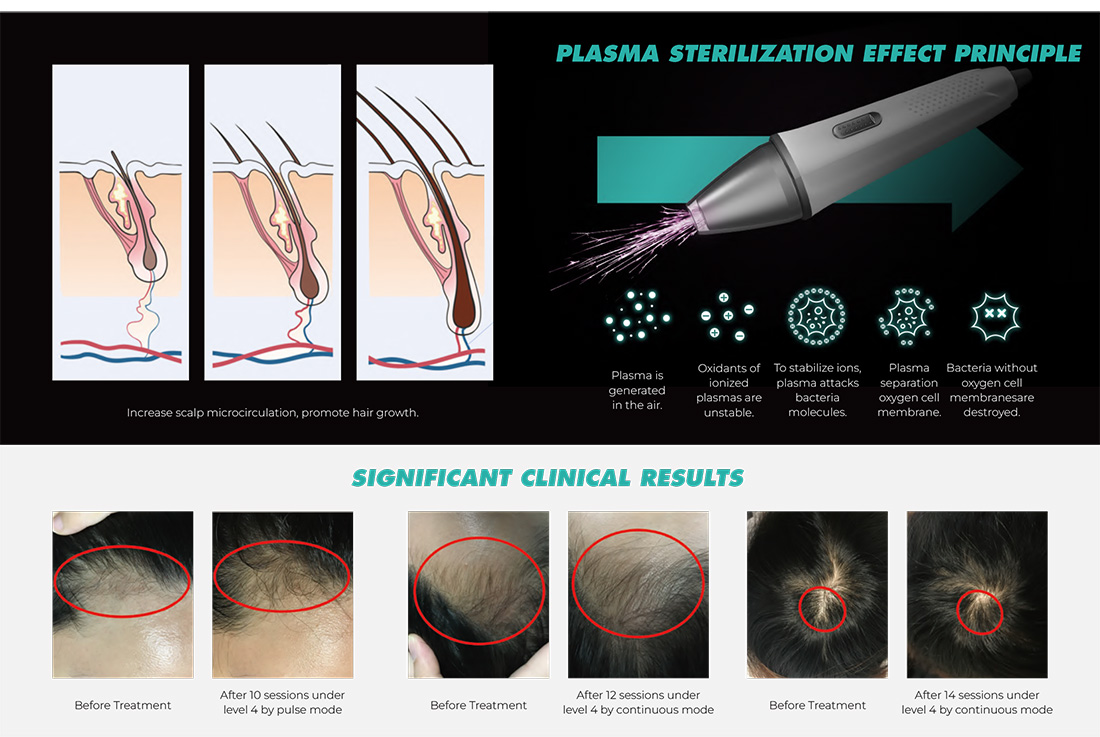

COLD PLASMA HAIR GROWTH WORKING PRINCIPLE
The increase of intracellular ROS is the main factor for plasma-induced transfection. Therefore, the optimization of transfection efficiency can be achieved by regulating the change of ROS. In addition, the efficiency of transdermal drug delivery can also be enhanced by plasma treatment. Plasma can penetrate the skin layer faster and deeper without damaging the skin. It can penetrate the skin layer with molecules that are more than six times the size of molecules that can normally pass through the skin layer, and enhance the skin penetration of macromolecules.
Plasma induced keratinocyte proliferation. The expression of Wnt protein and B-catenin protein leads to the proliferation and differentiation of keratinocytes. Keratinocytes are the cells that produce the main building block of hair, keratin, the main structural component of hair. Keratin also protects hair from external stimuli by enhancing the ability of cells to resist trauma, and Wnt proteins play an important role in hair follicle growth and differentiation.
Plasma acts on the scalp and forms tiny damages on the scalp. Its mechanical and thermal effects promote the increase of fibroblast growth factor-2 (FGF-2), and fibroblasts can increase the production of collagen, enhance thickness and density, and reduce scalp damage. Oil secretion makes the scalp healthier.
The ozone generated by the plasma inactivates a variety of bacteria, fungi, viruses and biofilms, the number of bacteria is significantly reduced, and the activity of viruses can also be inhibited. At the same time, it inhibits the key growth factors targeting these inflammatory diseases. Its high bactericidal efficiency, the inflammatory process can be well controlled.
Parameters
| Input Power: | 12V/3A | Cold Plasma Pulse Width: | 75ms |
|---|---|---|---|
| Output Power: | 10W(AVG); 150W(PEAK) | Cold Plasma Frequency: | 1-10HZ |
| Energy: | 10~400mJ/Dot | Cold Plasma Temp.: | ≤55°C |
| Pulse Width: | 0.1~4ms/Dot | Main frame size: | L456*W395*H355mm |
| Spark Mode: | Arc; Glow; Single pin | Trolly size: | L420*W430*H820mm |
| Scan Mode: | Dot, Line, Array | Main frame net weight: | 10.8KG |
| Dots Number: | 1, 3, 5, 9, 13, 21, 25 | Trolly net weight: | 18KG |
| Cold Plasma Energy Level: | 1.5W; 2.5W; 3.5W; 4.5W |
