Under the controllable way, the needle-shaped plasma column is released to the skin surface by the fractional way and dot by dot. The principle is to ionize gas in the air to create more small electrical arches, tissues are treated “sublimate” and avoid spreading unwanted heat to the surrounding areas. The heat widens and is subsequently transferred into the epidermis all the way to the papillary layer which contains fibroblast cells. The result is contraction and tightening of the skin cells, leads to the skin remodeling and improvement in various signs of aging and scar etc.
Equipment Characters
A Two spark modes for invasive way

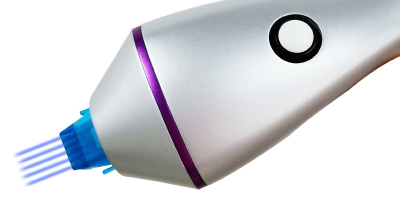

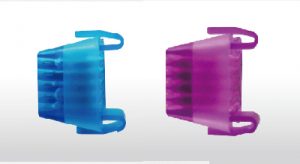

The purple color tip’s needles just contact skin, the short plasma arc penetrate deeply into skin and happen local glow. Invasive treatment way by high energy level 6 to 10, different skin situation can choose exact energy level for wrinkles, eyes, and scar. The epidermis is completely broken down, and the energy is mainly released axially along the breakdown path, reaching the dermal papilla layer and reticular layer.

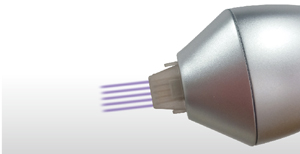

Traditional single needle tip focus to accurate treatment for face’ s small area, especially eyelid lifting. Moles, warts and polyp, etc. also can be cut fast by this tip.

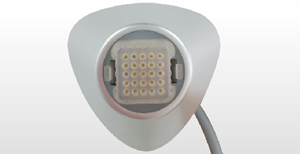

B Safe and accurate fractional scan
High power design but more energy level choice, high energy of plasma column. Adaptive high-frequency excitation source, the plasma column’s energy is stable, convenient to adjust, and good directivity.
Small dot size and even dots distribution, low risk of skin side effect. Comfortable treatment feeling, no need anesthesia, high safety and no downtime.
Deep treatment depth, excellent effect.
C More scan mode
Dot, line, and fractional array are optional, meet target shapes precisely.
D Fast and efficient
Dot-by-dot scanning operation, short treatment time, good consistency to dots, ensure the excellent effect.
E High integration and smart design. High reliability and stable performance.
F Low investment and but extremely high return.
Technical Advantages
Compared to Fractional RF, whose energy just reach epidermis, so can’t treat wrinkles and scar problem in dermis. Needles don’t contact skin to operate, not be influenced by skin resistance. By higher voltage, faster discharge, release energy in shorter time, lower skin damage.
Compared to Fractional laser, Mjolnir Trio’s investment cost is much more economical but can cover all the applications of laser. Safety risk to operator and patient both are much lower and can be used more widely, no any medical limits.
Compared with normal plasma, whose current excitation is performed at a lower frequency, and the plasma column has poor directivity and low power. Single plasma’s treatment needs much longer time, the handle and energy is difficult to control, un-even treatment depth, and dots’ consistency is poor, so more dangerous and bigger damage risk to skin.
Compared with Micro-needle RF, which is purely invasive treatment way, Mjolnir is much less dangerous and has much lower consumable cost.
Conclusion: Fractional plasma is best solution to replace all the fractional beauty technologies as innovative design!
Application
Cut moles, warts and polyp etc.
Eye treatment: eyelid and eye bags
Wrinkles: striae gravidarum, stretch mark, striae atrophicae, aging wrinkle
Anti-aging: aged skin, flabby and flagging skin, no elasticity
Scars: acne scar, surgical scar, proliferative scar, burn scar, traumatic scar
Parameters
| Input Power: | 12V/3A | Cold Plasma Pulse Width: | 75ms |
|---|---|---|---|
| Output Power: | 10W(AVG); 150W(PEAK) | Cold Plasma Frequency: | 1-10HZ |
| Energy: | 10~400mJ/Dot | Cold Plasma Temp.: | ≤55°C |
| Pulse Width: | 0.1~4ms/Dot | Main frame size: | 225*261*228 mm |
| Spark Mode: | Arc; Glow; | Main frame net weight: | 6.8KG |
| Scan Mode: | Dot, Line, Array | Cold Plasma Energy Level: | 1.5W; 2.5W; 3.5W; 4.5W |
| Dots Number:1 | 1, 3, 5, 9, 13, 21, 25 |
